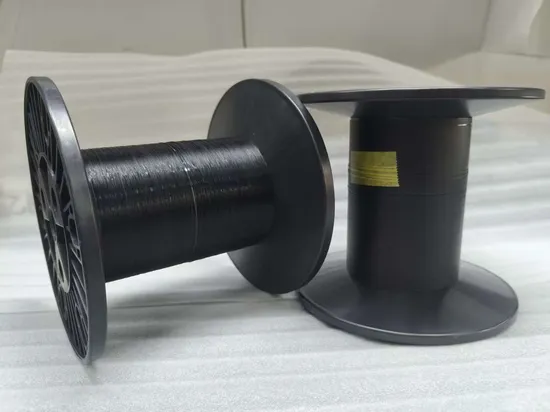

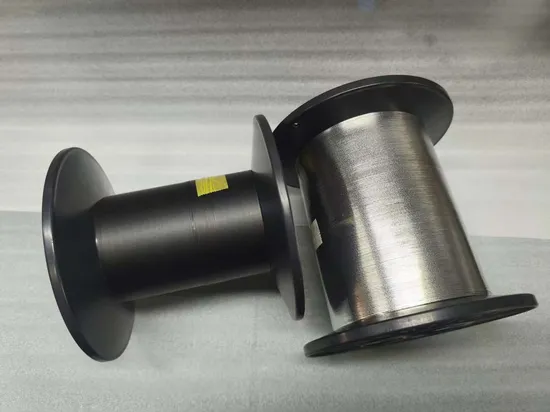

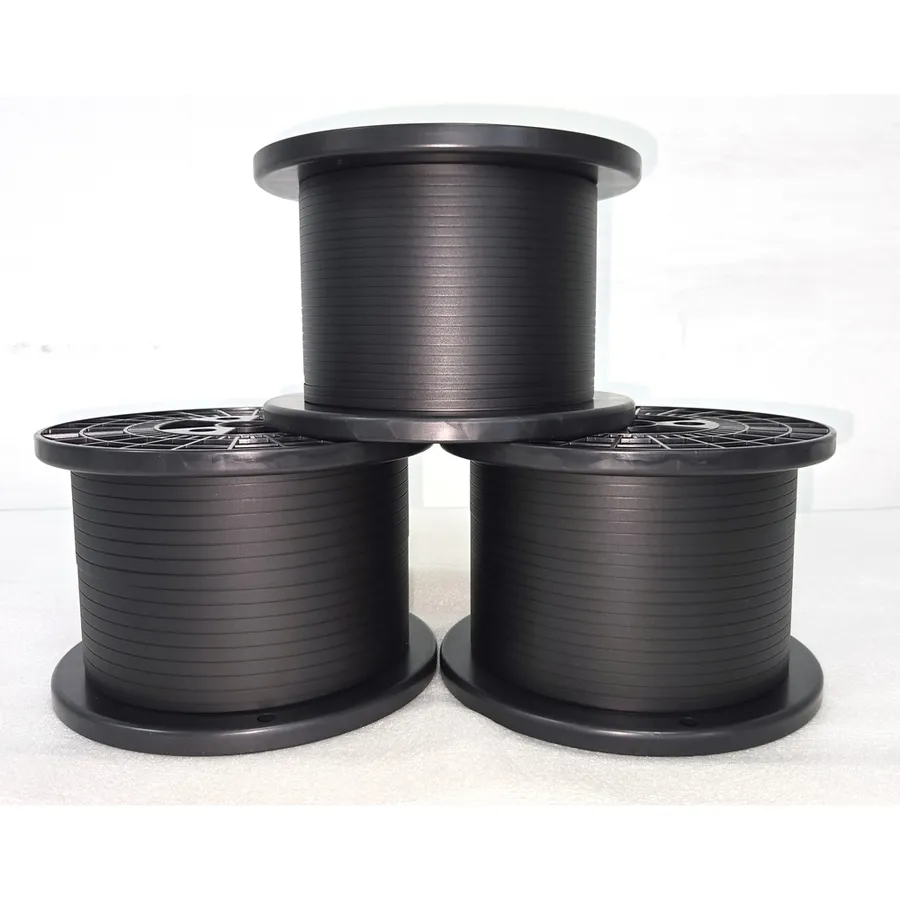

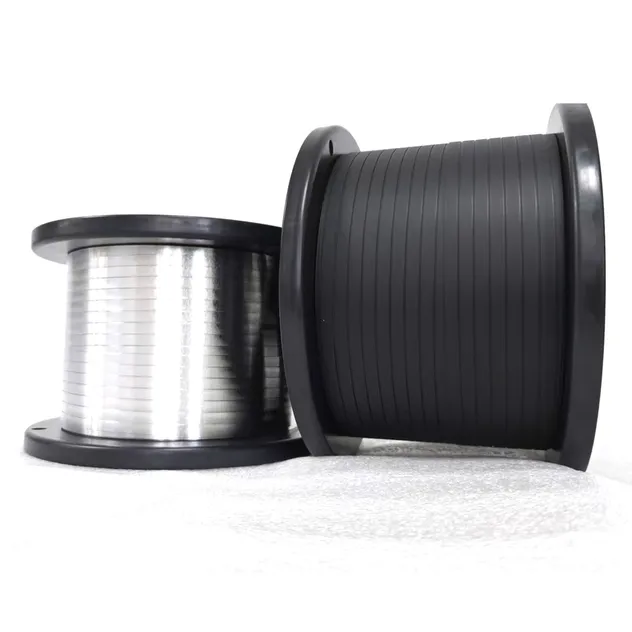

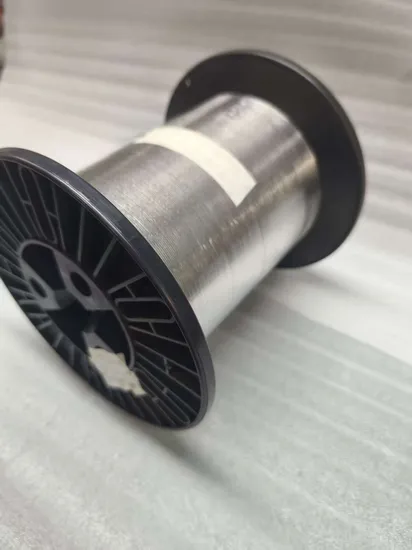

High Purity Oxygen Free Copper Solar Cell Bus Bar Tabbing Wire Solar Panel PV Ribbon

Customization:	Available
Condition:	New
Certification:	ISO, CB, CE

Quantity:



Inquire Add to Basket

PV Ribbon High Purity Oxygen Free Copper Solar Cell Bus Bar Tabbing Wire Solar Panel PV Ribbon Solar Panel PV Ribbon

Product Description

Basic Info.

Application

Apply to Multi-Busbar Modules

Specification

Normal, Standard Specifications or Customized

Product Name

Black Busbar Ribbon

Keywords

Black PV Ribbon

Material Grade

Tu1

Composition

Cu>/=99.97%

20celsius Resistivity

</=0.01725 ω.mm2/M

Elongation

>/=25%

Bending Strength

</=4.0mm/M

Tensile Strength

>/=170MPa

Yield Strength

75-125MPa

Material

Cu+Sn+Pb

Coating

Tin-Coated

Purposes

Connecting Cell Strings and Junction Boxes

Transport Package

Standard Packaging or Customized

Trademark

BAICHEN XINYE

Origin

Jiangsu, China

Production Capacity

50000 Kg/Year

Product Description

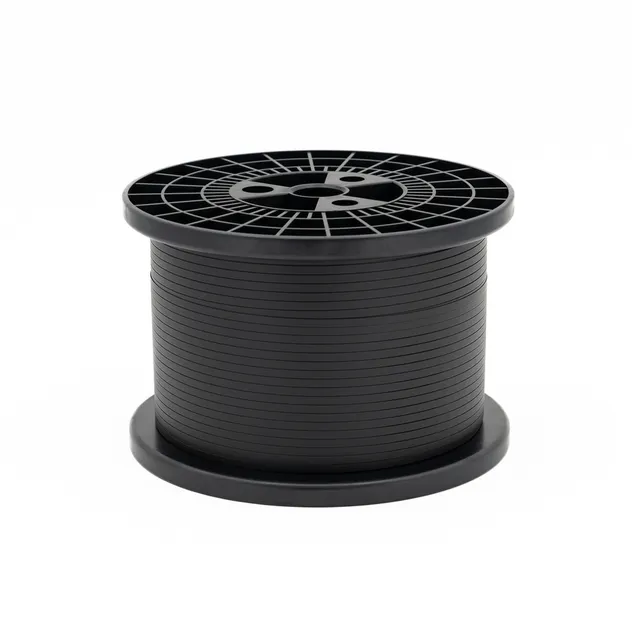

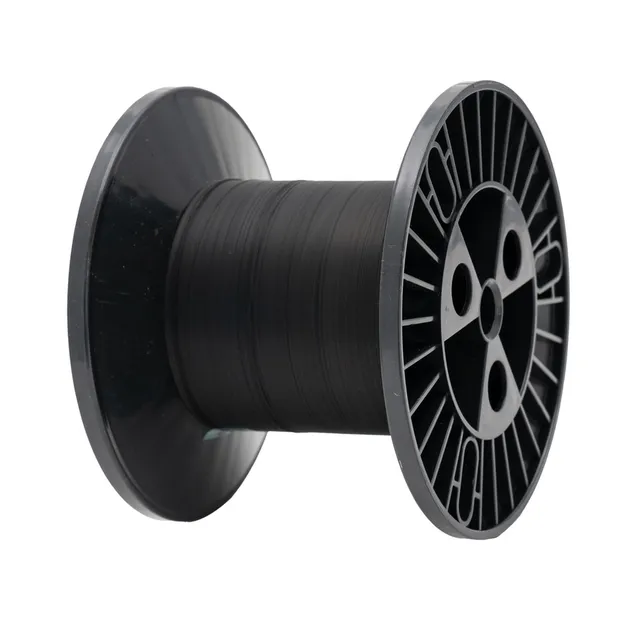

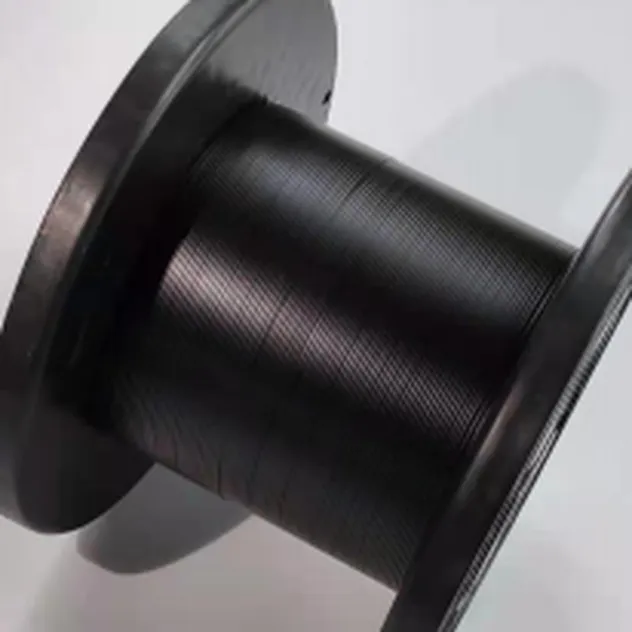

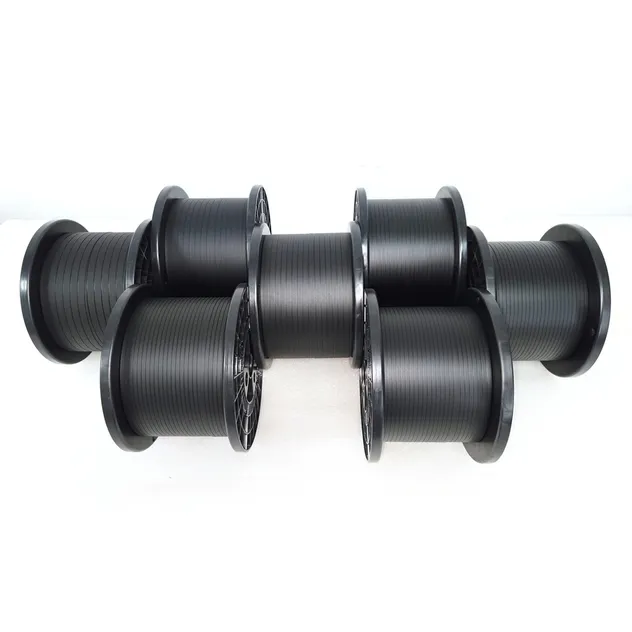

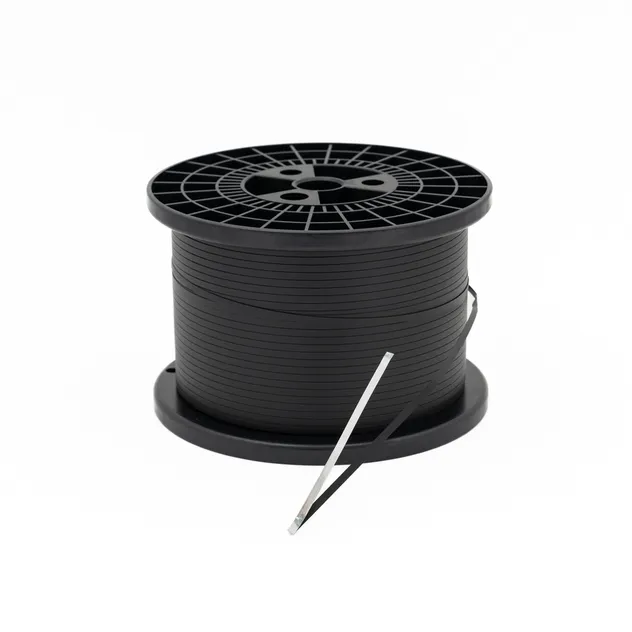

PV BLACK BUS RIBBON

As a vital link in photovoltaic modules, this black bus ribbon seamlessly connects solar cells. Its unique black material ensures a consistent, appealing look superior to traditional bus ribbons. With a high-purity copper conductor, it delivers excellent conductivity, while an insulating layer prevents energy leakage, enhancing the module's all-black aesthetic with superior insulation.

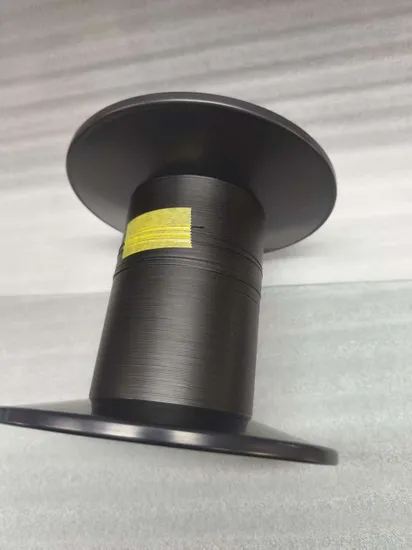

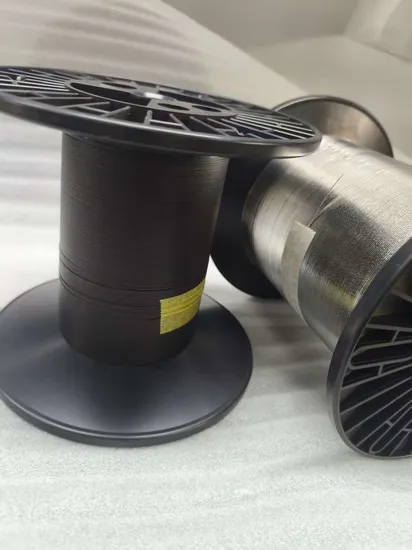

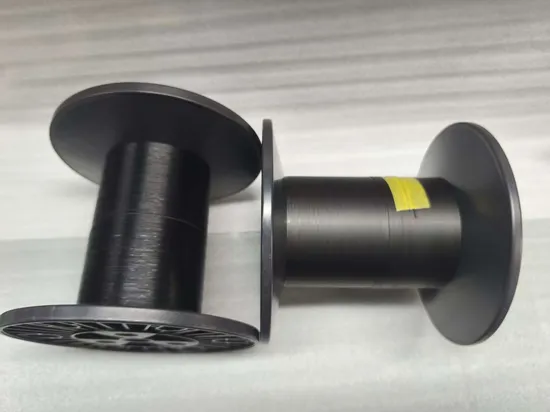

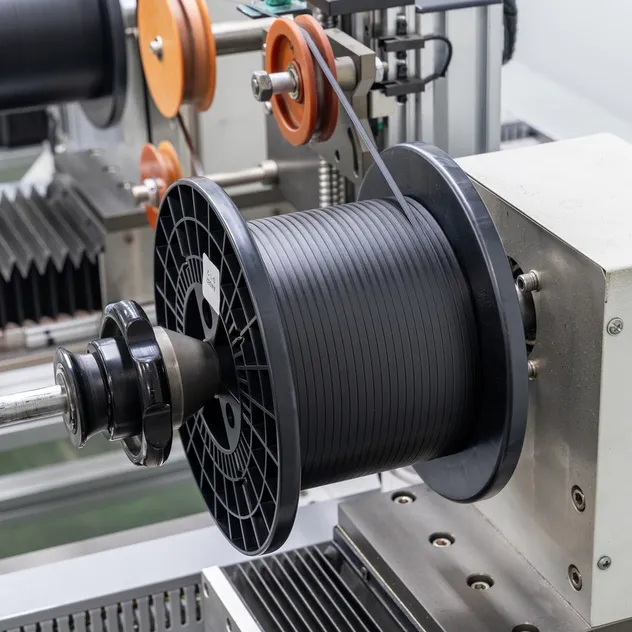

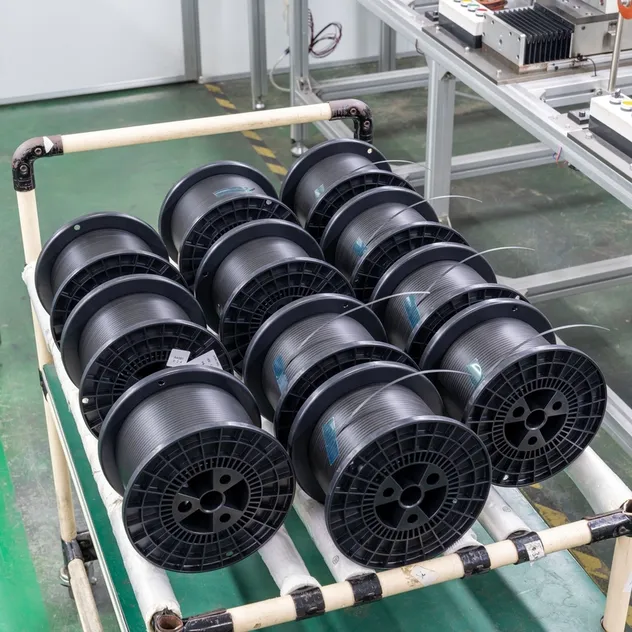

Detailed Photos

AESTHETICS

POWER GENERATION PERFORMANCE

WEATHER RESISTANCE

Black PV busbars offer a sleek appearance in all-black modules, ideal for BIPV. They blend seamlessly with architectural styles, unlike traditional modules, adding elegance and innovation to structures.

Black busbars ensure exceptional electrical conductivity, efficiently channeling current from solar cells and minimizing energy loss.

Black busbars and encapsulation materials are engineered for resistance against UV, moisture, water, and corrosion, ensuring long-term stability in extreme conditions, thereby extending module lifespan.

Product Parameters

TECHNICAL PARAMETERS
Product Name	Black Busbar Ribbon
Keywords	Black PV Ribbon
Material Grade	TU1
Composition	Cu>/=99.97%
20Celsius Resistivity	</=0.01725 Ω.mm2/m
Elongation	>/=25%
Bending Strength	</=4.0mm/m
Tensile Strength	>/=170Mpa
Yield Strength	75-125Mpa
Material	Cu+Sn+Pb
Coating	Tin-Coated
Purposes	Connecting Cell Strings And Junction Boxes
Application	Apply To Multi-Busbar Modules
Origin	China

Product Name	Size(mm)	Size(mm)	Size(mm)	Size(mm)	Size(mm)
PV Black Ribbon	0.15*4	0.2*4	0.25*4	0.3*4	0.35*4
	0.15*5	0.2*5	0.25*5	0.3*5	0.35*5
	0.15*6	0.2*6	0.25*6	0.3*6	0.35*6
	0.15*7	0.2*7	0.25*7	0.3*7	0.35*7
	0.15*8	0.2*8	0.25*8	0.3*8	0.35*8

BUILDING-INTEGRATED PHOTOVOLTAICS (BIPV)

Black busbar ribbons allow modules to blend into structures, becoming integral to roofs and walls. This meets aesthetic and technological demands of high-end residential and commercial landmarks, tapping into the high-value BIPV market.

HIGH-END LANDSCAPE PROJECTS

In parks, scenic areas, and projects focusing on environmental harmony, structures like awnings and pavilions benefit from the pure black look of your modules, enhancing aesthetics without visual discord.

ACHIEVING COMPETITIVE DIFFERENTIATION

In a market filled with similar products, black busbar ribbons give your modules a distinct, pure black appearance, creating a visible differentiation advantage. This attracts design-focused customers and aids market expansion.

SEIZING HIGH-END MARKET DEMAND

All-black modules are essential in the high-end market, with black busbar ribbons as their core. The aesthetic premium they offer translates to higher product profit margins.

COMPATIBLE WITH GREEN BUILDING CONCEPTS

More than just a photovoltaic component, the black busbar ribbon enhances aesthetics and compatibility with modern architecture's environmental and aesthetic goals, supporting sustainable development and boosting brand credibility.

FAQ

Q1: Are you a factory or a trader?
A: We are a manufacturer combining industry and trade. We warmly welcome visits to our company.

Q2: Can I add my LOGO to the product?
A: We offer on-demand customization, including LOGO, color, and size modifications.

Q3: What payment methods do you support?
A: We accept T/T, Western Union, Paypal, cash, etc. Details are open for negotiation.

Q4: What are your modes of transportation?
A: We choose the best transport method (sea, air, land) based on your product needs or preferences.

Q5: How can I get an accurate quotation?
A: Provide your detailed requirements and product images for a tailored solution and pricing.
