Efficient Black PV Ribbon for Advanced Photovoltaic Projects

Customization:	Available
Condition:	New
Certification:	ISO, CB, CE

Quantity:



Inquire Add to Basket

Product Description

Basic Info.

Model NO.: Black Busbar Ribbon
Application: Apply to Multi-Busbar Modules
Specification: Normal, Standard Specifications or Customized
Product Name: Black Busbar Ribbon
Keywords: Black PV Ribbon
Material Grade: Tu1
Composition: Cu>/=99.97%
20celsius Resistivity: </=0.01725 ω.mm2/M
Elongation: >/=25%
Bending Strength: </=4.0mm/M
Tensile Strength: >/=170MPa
Yield Strength: 75-125MPa
Material: Cu+Sn+Pb
Coating: Tin-Coated
Purposes: Connecting Cell Strings and Junction Boxes
Transport Package: Standard Packaging or Customized
Trademark: BAICHEN XINYE
Origin: Jiangsu, China
Production Capacity: 50000 Kg/Year

Product Description

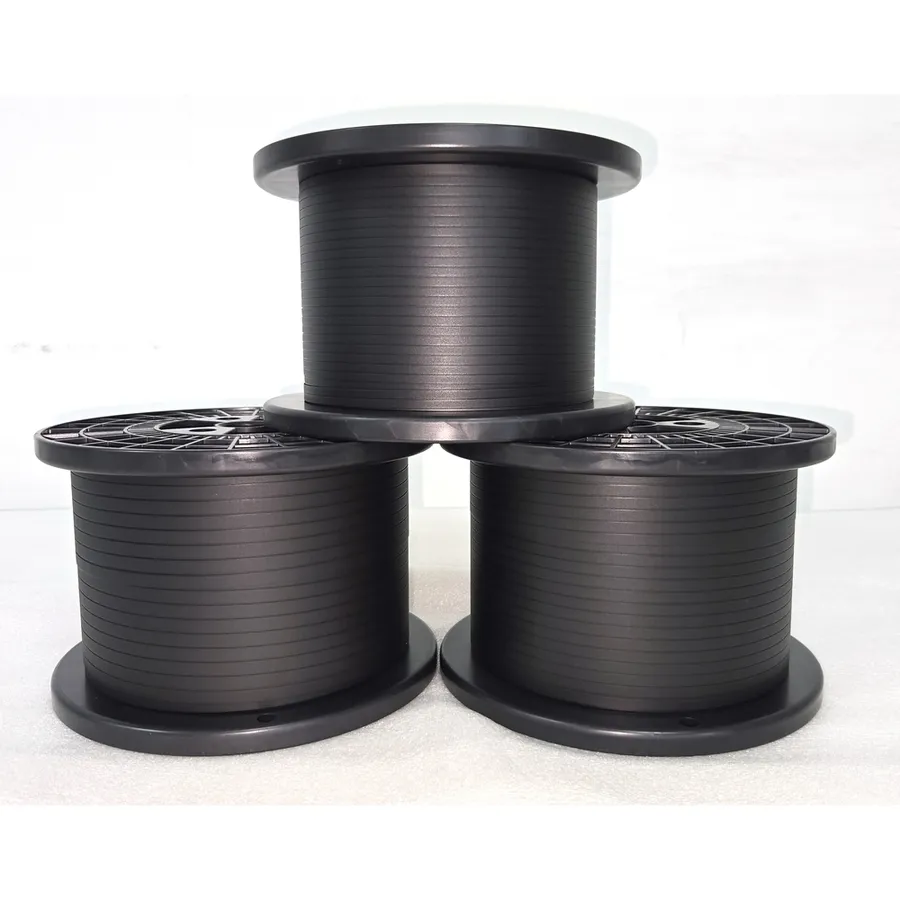

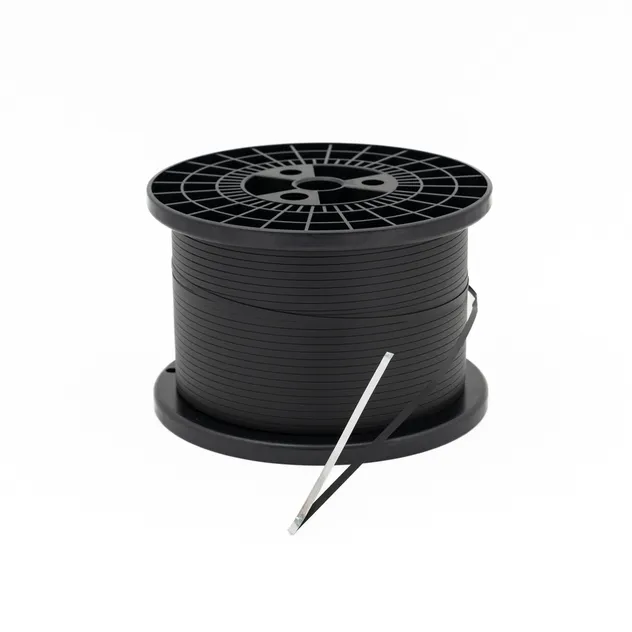

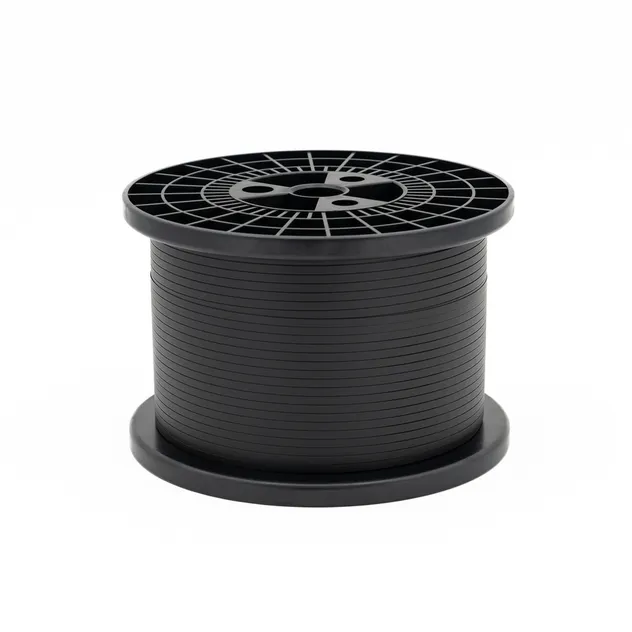

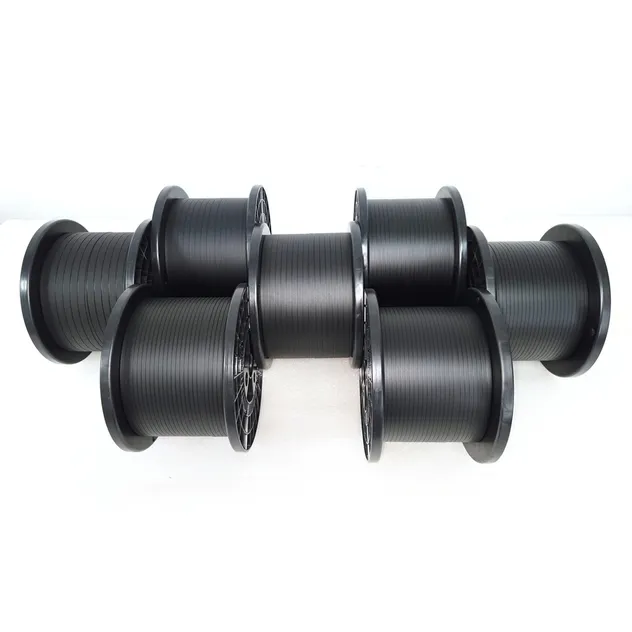

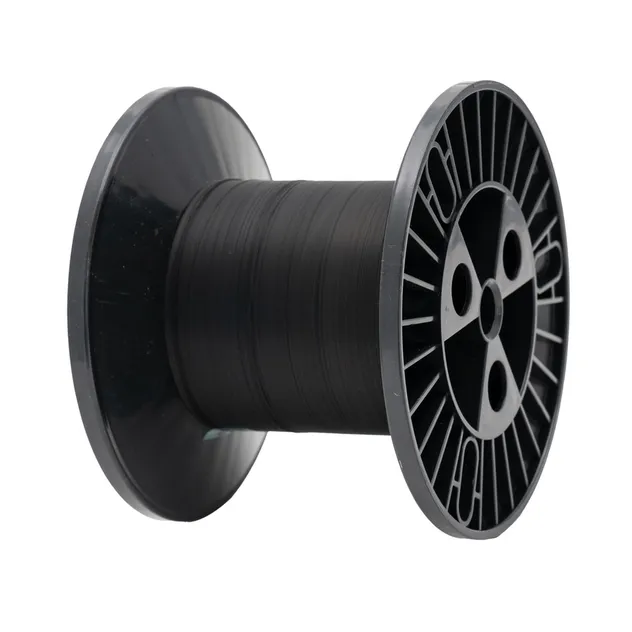

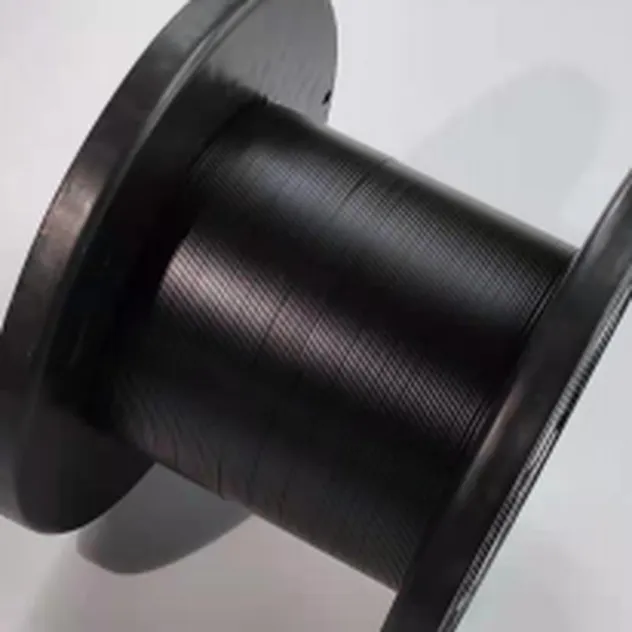

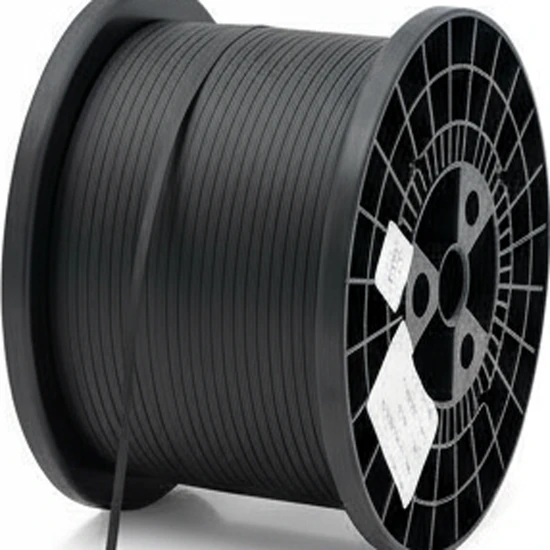

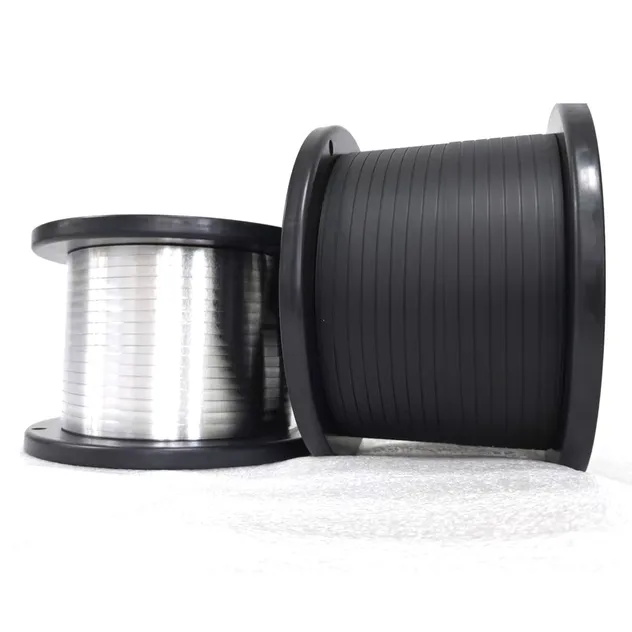

PV BLACK BUS RIBBON

Essential for photovoltaic modules, this component connects solar cells using a unique black material, offering a more uniform and visually appealing look than traditional bus ribbons. Featuring a conductor and insulating layer, the high-purity copper conductor ensures optimal conductivity. The insulating layer guards against leakage, with black material providing superior insulation and enhancing the all-black module's design.

Detailed Photos

AESTHETICS

POWER GENERATION PERFORMANCE

WEATHER RESISTANCE

The standout feature of black PV busbars and modules is their uniform black aesthetic. Ideal for building-integrated photovoltaics (BIPV), they harmonize with diverse architectural styles, elevating both appearance and technology unlike conventional PV modules.

Black busbars provide superior electrical conductivity, efficiently channeling solar-generated current and minimizing energy loss.

Specially treated black busbars and encapsulation materials offer UV, moisture, water, and corrosion resistance. They endure harsh conditions like high temperatures and humidity, prolonging module lifespan.

Product Parameters

TECHNICAL PARAMETERS
Product Name	Black Busbar Ribbon
Keywords	Black PV Ribbon
Material Grade	TU1
Composition	Cu>/=99.97%
20Celsius Resistivity	</=0.01725 Ω.mm2/m
Elongation	>/=25%
Bending Strength	</=4.0mm/m
Tensile Strength	>/=170Mpa
Yield Strength	75-125Mpa
Material	Cu+Sn+Pb
Coating	Tin-Coated
Purposes	Connecting Cell Strings And Junction Boxes
Application	Apply To Multi-Busbar Modules
Origin	China

Product Name	Size(mm)	Size(mm)	Size(mm)	Size(mm)	Size(mm)
PV Black Ribbon	0.15*4	0.2*4	0.25*4	0.3*4	0.35*4
	0.15*5	0.2*5	0.25*5	0.3*5	0.35*5
	0.15*6	0.2*6	0.25*6	0.3*6	0.35*6
	0.15*7	0.2*7	0.25*7	0.3*7	0.35*7
	0.15*8	0.2*8	0.25*8	0.3*8	0.35*8

BUILDING-INTEGRATED PHOTOVOLTAICS (BIPV)

Black busbar ribbon seamlessly integrates into buildings, becoming part of roofs and walls. It satisfies the high aesthetic and technological standards of upscale residential and commercial projects, facilitating entry into the valuable BIPV market.

HIGH-END LANDSCAPE PROJECTS

In parks, scenic locations, or projects prioritizing environmental harmony, structures like awnings and pavilions benefit from the pure black modules, maintaining visual harmony and balancing function with aesthetics.

ACHIEVING COMPETITIVE DIFFERENTIATION

In a market of uniformity, black busbar ribbon provides a distinct pure black look, offering a notable visual edge. This attracts customers seeking aesthetic appeal and aids expansion into new markets.

SEIZING HIGH-END MARKET DEMAND

All-black modules open doors to premium markets. Our black busbar ribbons form the backbone of these high-value products, with their aesthetic allure directly boosting profit margins.

COMPATIBLE WITH GREEN BUILDING CONCEPTS

The black busbar ribbon is not just photovoltaic tech but a design catalyst. It enhances module compatibility with eco-friendly architectural trends, aligning with green development goals and elevating product brand trust.

FAQ

Q1: Are you a factory or a trader?
A: We are a manufacturer combining industry and trade. We warmly welcome you to visit us.

Q2: Can I add my LOGO to the product?
A: We offer on-demand customization, including LOGO, color, and appearance size modifications.

Q3: What payment methods do you support?
A: We support T/T, Western Union, Paypal, cash, etc. Details are negotiable.

Q4: What are your modes of transportation?
A: We select the best transport method (sea, air, land) per goods' conditions, or per your request.

Q5: How can I get an accurate quotation?
A: Send your specific requirements and product images, and we will tailor a solution and provide a precise price.
