Technical Standard
Copper Type
Chemical composition of copper base (percentage by mass)
Type | Temper | Cu Content | O Content |
TU1 | soft | ≥99.97% | < 0.002% |
Copper Base Technical Spec
Product Type | Type | Temper | Conductivity (%IACS) | Thickness (mm) | Width (mm) | Diameter (mm) |
Cross Connector 5*0.3mm | TU1 | soft | 100 | 0.300±0.005 | 5 ±0.05 | / |
Cross Connector 4*0.4mm | TU1 | soft | 100 | 0.400±0.005 | 4 ±0.05 | / |
Cross Connector 4*0.3mm | TU1 | soft | 100 | 0.300±0.005 | 4 ±0.05 | / |
Cross Connector 6*0.3mm | TU1 | soft | 100 | 0.300±0.005 | 6 ±0.05 | / |
Cross Connector 8*0.3mm | TU1 | soft | 100 | 0.300±0.005 | 8 ±0.05 | / |
Cross Connector Reflective 5*0.3mm | TU1 | soft | 100 | 0.330±0.005 | 5 ±0.05 | / |
Cross Connector Reflective 4*0.4mm | TU1 | soft | 100 | 0.430±0.005 | 4 ±0.05 | / |
Cross Connector Reflective 4*0.3mm | TU1 | soft | 100 | 0.330±0.005 | 4 ±0.05 | / |
Cross Connector Reflective 6*0.3mm | TU1 | soft | 100 | 0.330±0.005 | 6 ±0.05 | / |
Cross Connector Reflective 8*0.3mm | TU1 | soft | 100 | 0.330±0.005 | 8 ±0.05 | / |
V-groove angle 120± 5° , V-groove depth 37± 5um | ||||||
General Requirements For Tinned Copper Ribbon
Free of cleaning, no copper exposure, tin detaching, black spot, corrosion, cracking, scar, scruff & burr exceeding tolerance on the surface. The coating surface of tinned copper ribbon appears to be shiny metal.
Solder Composition
Solder Code | Composition Proportion | Other Impruity In General |
Sn60Pb40 | Sn 60%±0.5%, Pb 40%±0.5% | (Zn+Fe+Sb+Cd) Max.0.003 |
Sn64Pb36 | Sn 64%±0.5%, Pb 36%±0.5% | (Zn+Fe+Sb+Cd) Max.0.003 |
SnBiAg | Sn 42± 1%, Bi 57± 1%, Ag 1 ±0.1% | (Zn+Fe+Sb+Cd) Max.0.003 |
SnAgCu | Sn 96.5 ±0.5%, Ag 3 ±0.5%, Cu 0.5 ±0.1% | (Zn+Fe+Sb+Cd) Max.0.003 |
Solder Technical Data
Coating Solder Alloys | Melting Point Approx. (℃) |
Sn60Pb40 | 188-195 |
Sn64Pb36 | 183-190 |
SnBiAg | 137-142 |
SnAgCu | 215-220 |
Technical Spec For Tinned Copper Ribbon
Product Type | Ribbon Thickness (mm) | Single Solder Thickness Tolerance ( µm) | Coated Ribbon Width Tolerance (mm) | Tensile Strength (N/mm2) | Rp0.2 Yield Strength (N/mm2) | Elongati On (%) | Camber (mm/m) |
Cross Connector 5*0.3mm | 0.35±0.01 | Thickness is following to the customer requirements | 5 ±0.1 | ≥ 170 | ≤120 | ≥25 | Max.5 |
Cross Connector 4*0.4mm | 0.45±0.01 | 4 ±0.1 | ≥ 170 | ≤120 | ≥20 | Max.5 | |
Cross Connector 4*0.3mm | 0.35±0.01 | 4 ±0.1 | ≥ 170 | ≤120 | ≥20 | Max.5 | |
Cross Connector 6*0.3mm | 0.35±0.01 | 6 ±0.1 | ≥ 170 | ≤120 | ≥20 | Max.5 | |
Cross Connector 8*0.3mm | 0.35±0.01 | 8 ±0.1 | ≥ 170 | ≤120 | ≥20 | Max.5 | |
Cross Connector Reflective 5*0.3mm | 0.35±0.01 | Reflective surface peak 0-5um, peak groove bottom 5-15um, flat surface 15-25um | 5 ±0.1 | ≥ 170 | ≤120 | ≥25 | Max.5 |
Cross Connector Reflective 4*0.4mm | 0.45±0.01 | 4 ±0.1 | ≥ 170 | ≤120 | ≥25 | Max.5 | |
Cross Connector Reflective 4*0.3mm | 0.35±0.01 | 4 ±0.1 | ≥ 170 | ≤120 | ≥25 | Max.5 | |
Cross Connector Reflective 6*0.3mm | 0.35±0.01 | 6 ±0.1 | ≥ 170 | ≤120 | ≥25 | Max.5 | |
Cross Connector Reflective 8*0.3mm | 0.35±0.01 | 8 ±0.1 | ≥ 170 | ≤120 | ≥25 | Max.5 |
Volume resistivity of tinned copper ribbon ≤2.30 × 10-6Ω·cm
Above product technical spec can be determined under the negotiation between supplier and customer.
Packaging / Labeling / Transportation / Storage
Packaging Method
Product | Packaging Method | |

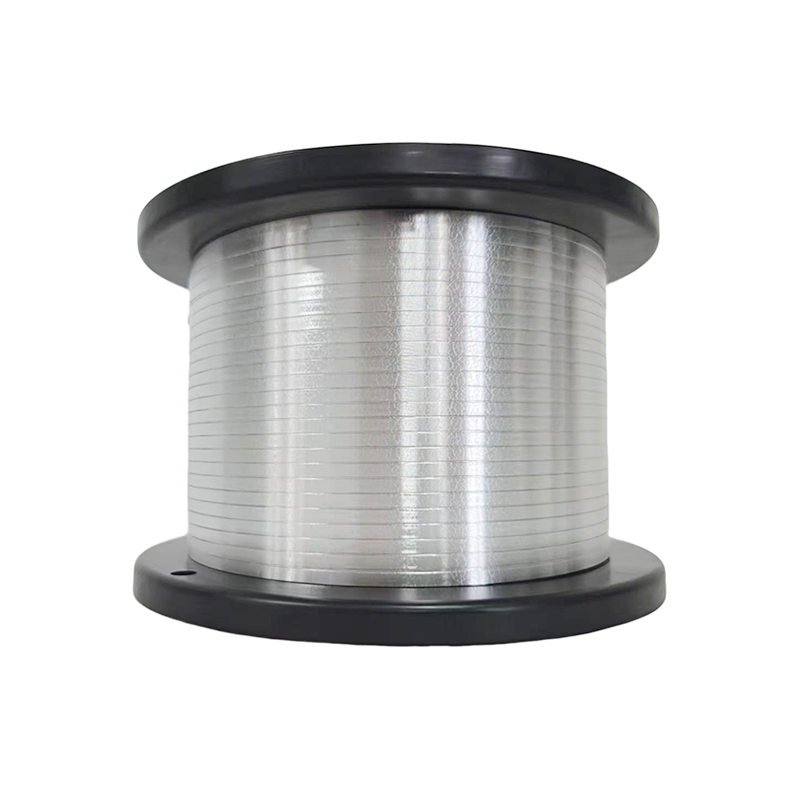

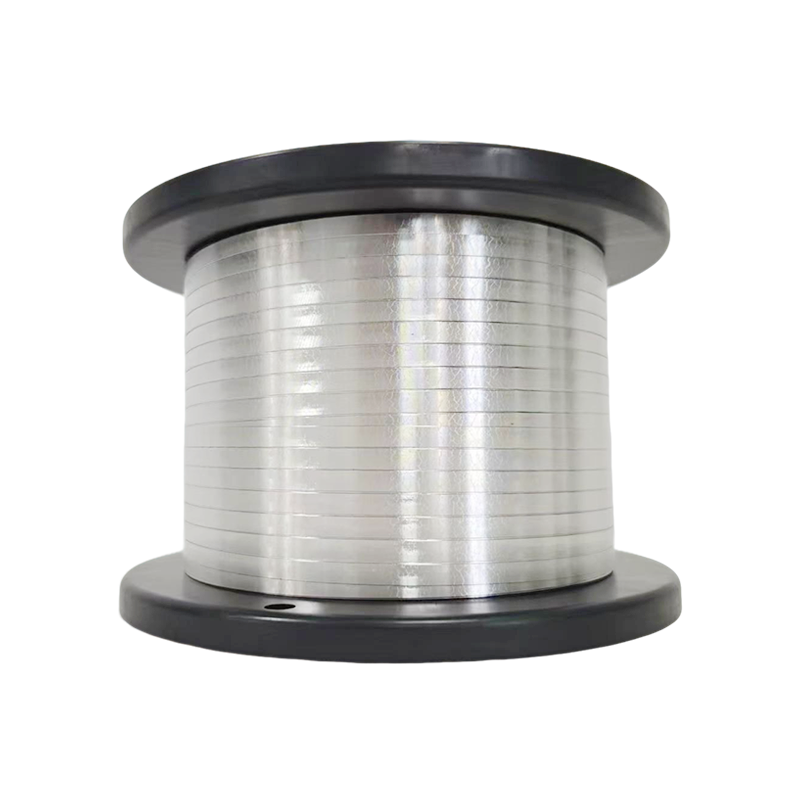

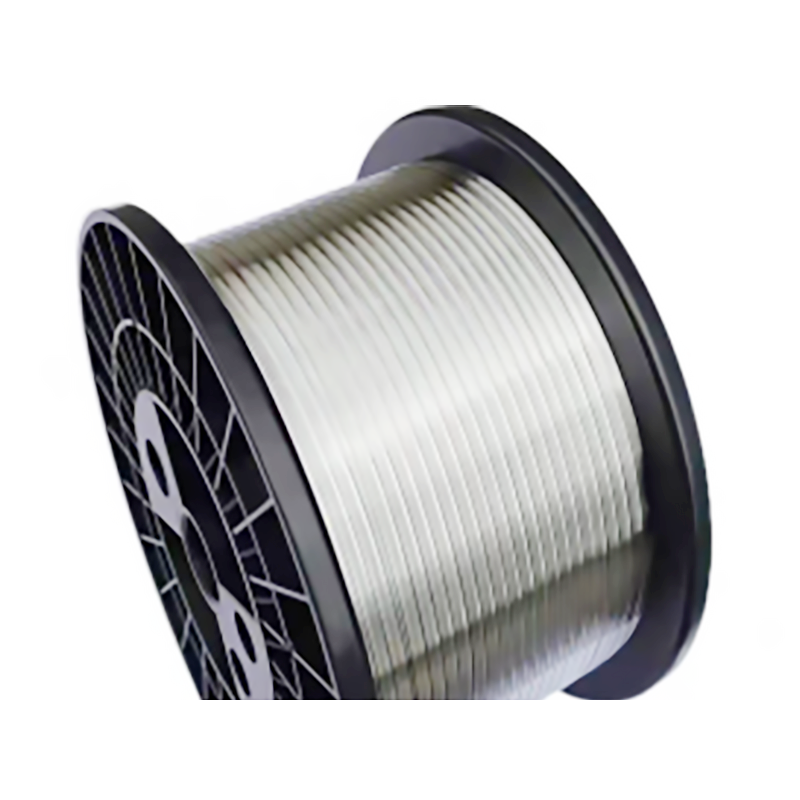

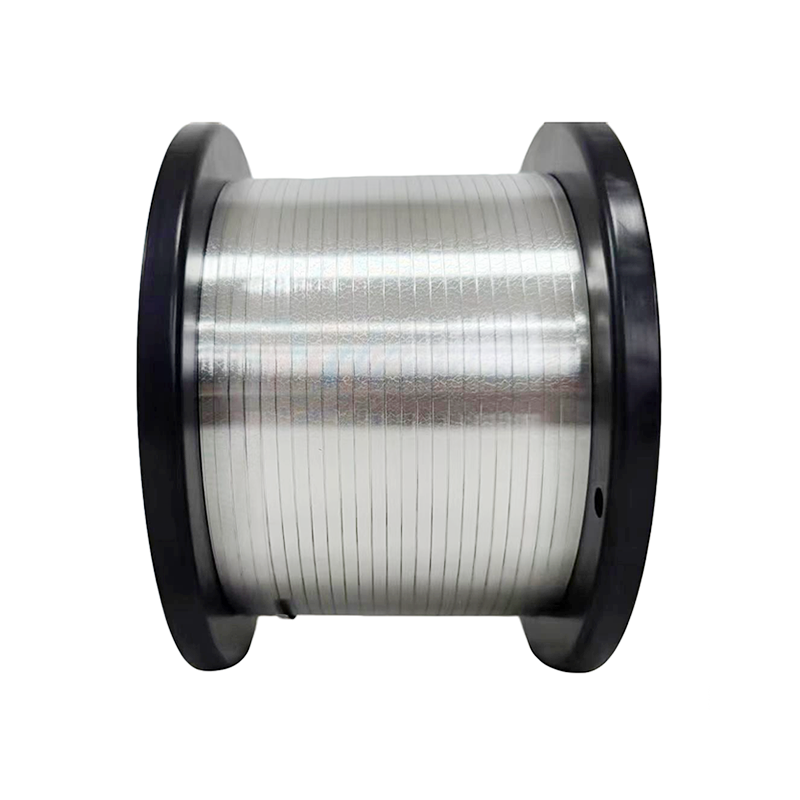

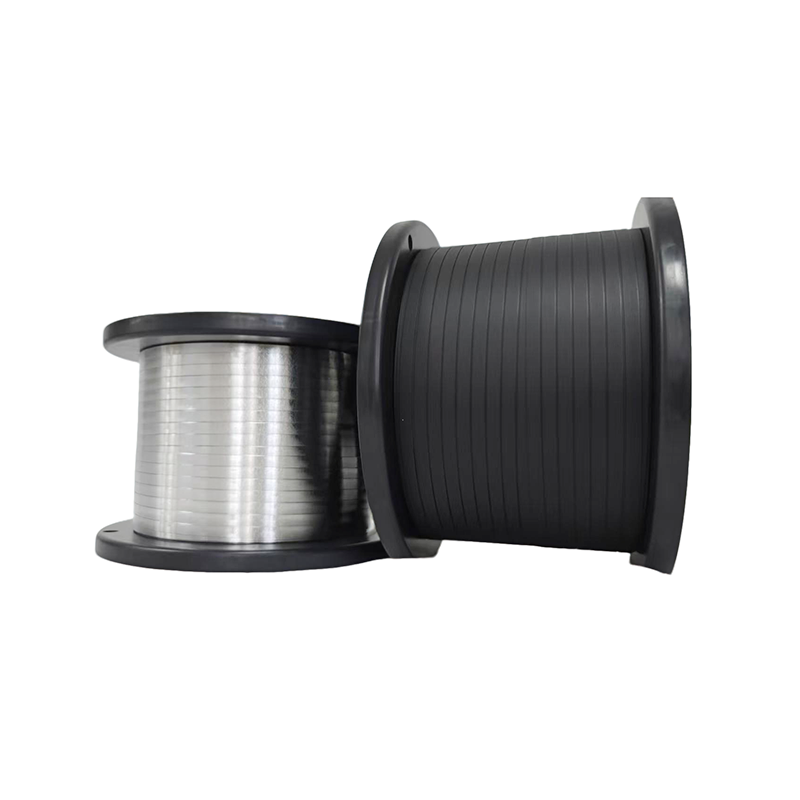

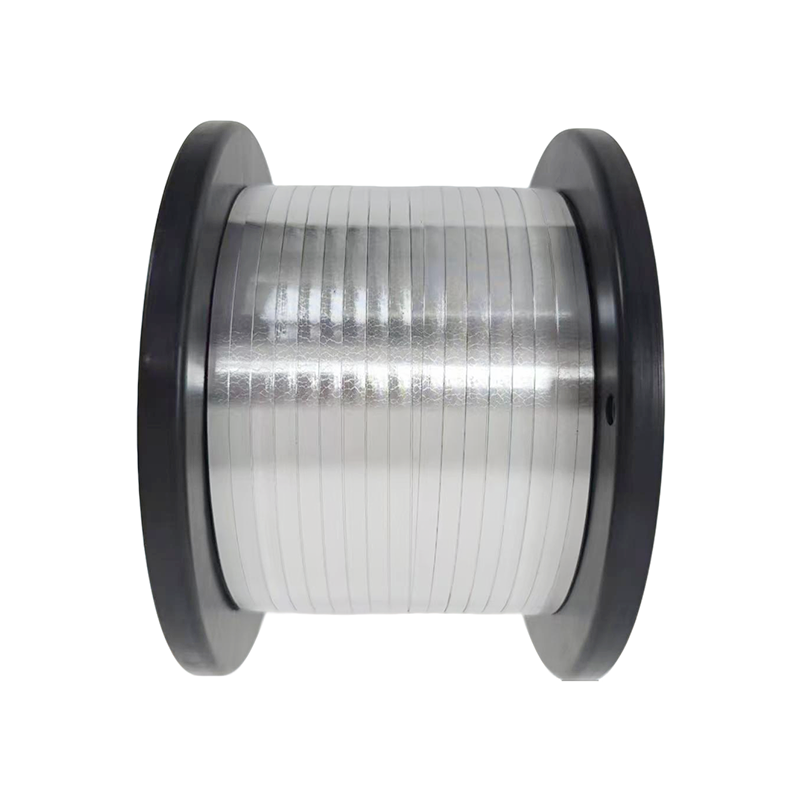

Tinned copper ribbon | Pancake packing | Spool packing |
Spool Size
Above packaging size can be determined per actual requirements for products.
Note: All spools are black.
Labeling
Every smallest inner package need to be attached with following labeling.
"product label" a piece
There is a piece of "output label" inside every inner carton.
There should be "environment sound" label on lead free product.
The content of "product label" includes but not limits to: spec, spool No., production date, net weight, Lot No., shelf time, company information.
Transportation
Transportation mode can be air, highway, railway, sea depending on the different regions where customers are located. But all kinds of transportation must meet product protection requirements.
Storage
Tinned copper ribbon should be stored properly under the dry, ventilated, free of acid & alkali or harmful gas environment, the relative humidity should not exceed 60%RH and the temperature should not exceed 40. And then the shelf time of our products will be up to 6 months referred to the production date.
Tinned copper ribbon shouldn't be placed directly on the floor, by the window, but on the dry pallet, further more, the total height of ribbon pile shouldn't exceed 1m, weight per pallet shouldn't exceed 1000KGS.
